The Precision Reference for Accurate Positioning

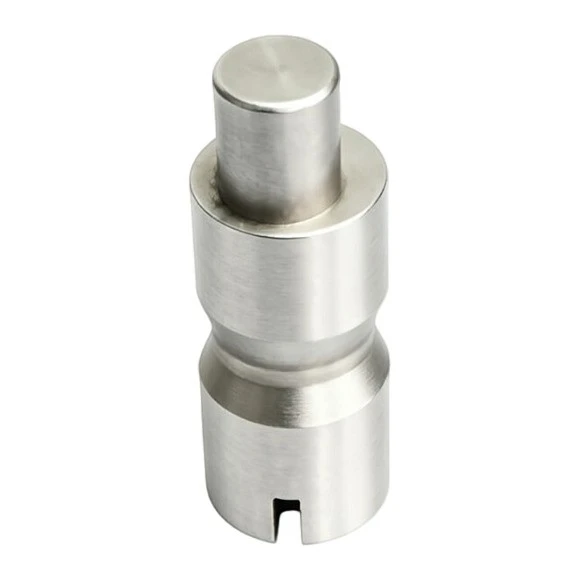

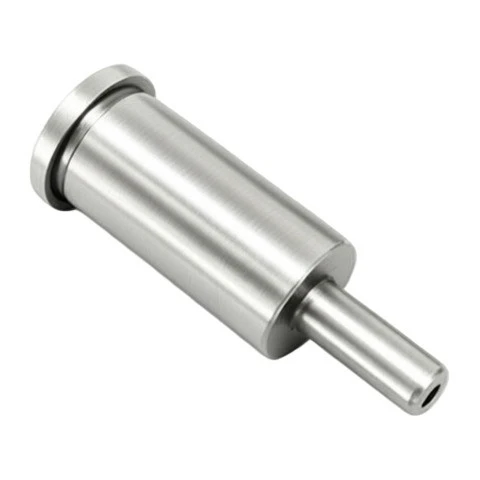

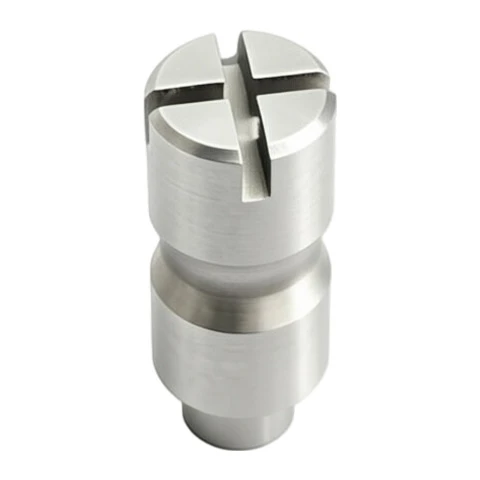

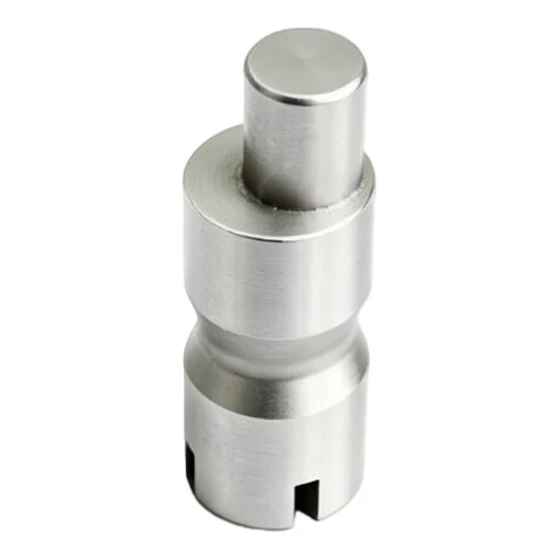

The Locating Shaft is a high-precision positioning part used in automation equipment. It helps the equipment achieve precise stops or rotational movements. It guides the mechanical parts to move to the exact absolute or relative positions set by the program. The locating shaft is a key part for achieving high-precision repeat positioning. A high-quality locating shaft is essential for the machining accuracy and operational efficiency of automated equipment.

Made with Dimensionally Stable Materials

We make the Locating Shaft from high-quality alloy steel or stainless steel. We choose materials with excellent dimensional stability and good wear resistance. We use turning, milling, and surface grinding to make it. We know that locating shafts need very tight tolerances on diameter and straightness. The diameter tolerance and straightness of the shaft directly affect the equipment's positioning accuracy. We control the machining precision to the micron level. This ensures every locating shaft provides a reliable positioning reference for the equipment. Every Locating Shaft is built for precision.

Our company has 29 years of experience in metal processing. We have a full R&D team of 26 senior engineers. Our precision machining center has 16 high-end CNC machines. These give us micron-level precision. We have our own testing lab with CMMs. We use these to check diameter, roundness, straightness, and concentricity of every shaft. We follow a strict quality control process. We do a 100% inspection on the first and last parts of every batch. This ensures every batch reaches the highest quality standards.

Your Partner for Positioning Accuracy

Choosing our Locating Shaft means you are choosing a partner who never compromises on positioning accuracy. We fully support OEM services. After you send us your drawings, we give you a clear quote in 48 hours. We offer a complete service from material selection to precision machining. We offer custom protective packaging to prevent damage during shipping. The Locating Shaft is our way of providing the most reliable "benchmark" for every automation equipment's high-precision positioning.

Product Specifications

Parameter	Details
Product Name	Locating Shaft
Material	High-Quality Alloy Steel / Stainless Steel
Dimension	Customized (Per customer drawing)
Process	Turning, Milling, Surface Grinding
Net Weight	Customized (Design-specific)
Performance	Customized (Design-specific)
