A Strong Metal Skeleton for Plastic Parts

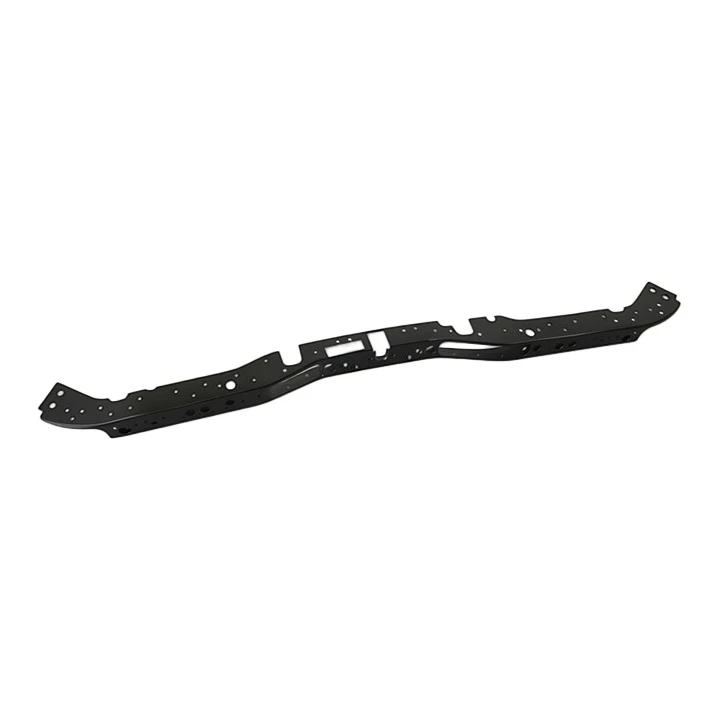

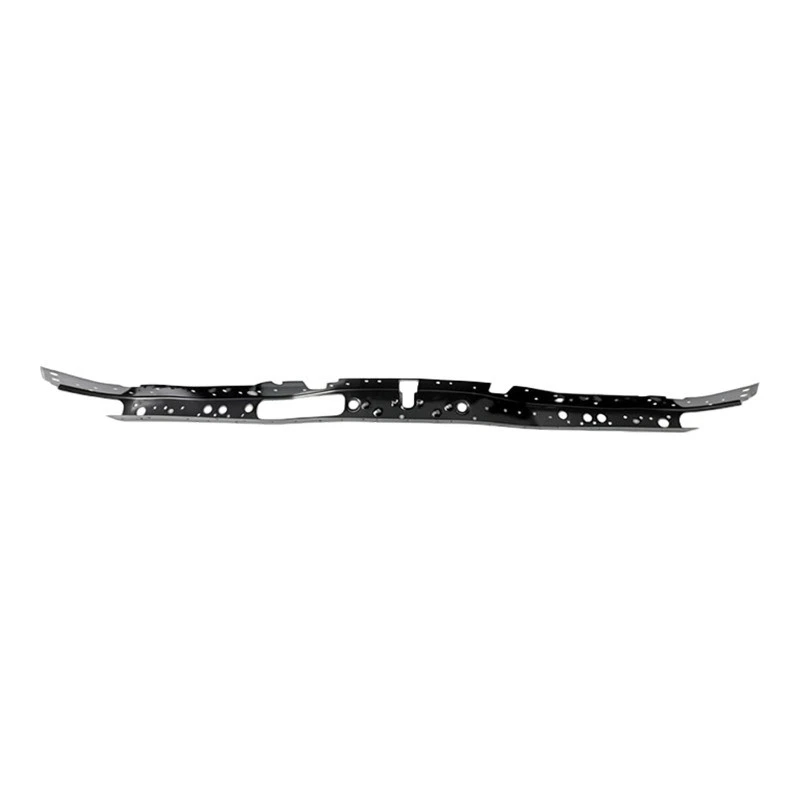

The Aries Film Insert is a metal reinforcement part made for chassis injection-molded parts. It is placed inside the injection mold and becomes one piece with the plastic material. This skeleton significantly increases the stiffness and strength of the plastic assembly. It provides reliable mounting points for the assembly. During molding, it also acts as a positioning reference. This skeleton takes the load during vehicle assembly. It prevents the plastic from cracking, stripping threads, or deforming during use. This part is essential for plastic part durability.
Protected by Dual Corrosion Resistance
We make the Aries Film Insert from HC220B0+Z100M-B-0 galvanized steel. This material has good formability and excellent corrosion resistance. The zinc coating is 100 grams per square meter. This provides long-lasting protection against rust. The part measures 1075*184*134(mm). We use stamping, spot welding, grinding, tapping, and e-coating to make it. We weld 4 M6 nuts onto the skeleton and tap threads into them. This allows for quick fastening during vehicle assembly. Every Aries Film Insert is built for durability.
Our company has 25 years of experience in automotive parts. We have a full R&D team of 26 senior engineers. This team has a lot of practical experience in die design and project management. Our spot welding workshop has more than 30 spot welders. These allow us to weld nuts and bolts efficiently. We have our own lab with weld penetration testers and tensile testers. We use these to check weld penetration and pull-out force accurately. We ensure every welded nut meets automotive-grade strength standards.
Your Partner for Complex Process Integration
Choosing our Aries Film Insert means you are choosing a partner who can integrate complex processes. Our products are used by major automakers like SAIC-GM, Changan, and Geely. We fully support OEM services. After you send us your drawings, we give you a clear quote in 48 hours. This product has a net weight of 2.355 KG. The dual protection of the zinc coating and e-coating ensures a salt spray cyclic test rating of level 6 or above. The Aries Film Insert is our way of providing the strongest metal "skeleton" for every chassis plastic assembly.
Product Specifications
|
Parameter |
Details |
|
Product Name |
Aries Film Insert |
|
Material |
HC220B0+Z100M-B-0 (Galvanized steel) |
|
Dimension |
1075 * 184 * 134 |
|
Process |
Stamping, Spot Welding (4*M6 Nuts), Grinding, Tapping, E-coating |
|
Net Weight |
2.355 KG |
|
Performance |
Salt Spray Cyclic Test: Level 6 or Above |
